European Journal of Chemistry 2012, 3(1), 13-16. doi:10.5155/eurjchem.3.1.13-16.543

Synthesis of an E-BODIPY based fluorescent Co-polymer containing organoboron quinolate units


Priya Hewavitharanage (1,*) , Prince Nzeata (2) , Jeffrey Wiggins (3)

(1) Department of Chemistry, University of Southern Indiana, Evansville, Indiana, 47712, USA
(2) Department of Chemistry, University of Southern Indiana, Evansville, Indiana, 47712, USA
(3) School of Polymers and High Performance Materials, University of Southern Mississippi, Hattiesburg, Mississippi, 39406, USA
(*) Corresponding Author

Received: 10 Nov 2011, Accepted: 04 Jan 2012, Published: 31 Mar 2012

Abstract

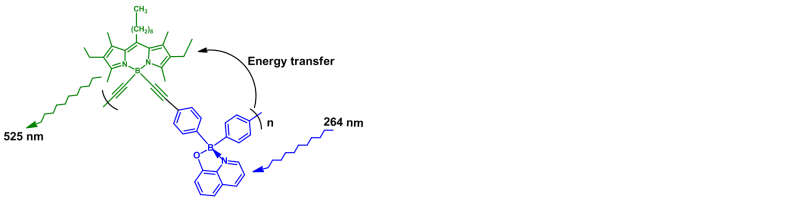

A novel fluorescent co-polymer with an organoboron quinolate and an E-BODIPY (BODIPY: 4,4-difluoro-4-bora-3a-4a-diaza-s-indacene) moiety was synthesized with the aim of producing a donor-acceptor polymeric system where the organoboron quinolate acts as the donor and the E-BODIPY moiety is the acceptor. The polymer has three prominent absorption bands: 264 nm (corresponding to the organoboron quinolate), 397 nm (corresponding to the organoboron quinolate and BODIPY) and 516 nm (corresponding to the E-BODIPY moiety). Excitation of the organoboron quinolate at 264 nm resulted in emission at 525 nm, giving a 261 nm Stokes shift. Energy transfer from the donor (organoboron quinolate) unit to the acceptor (BODIPY) explains the origin of this large Stokes shift.

3_1_13_16_800


Keywords


BODIPY; Stokes shift; Fluorescence; Donor-acceptor; Energy transfer; Organoboron quinolate

Full Text:

PDF /    /


DOI: 10.5155/eurjchem.3.1.13-16.543
