European Journal of Chemistry

Application of 4-chloro-7-nitrobenzofurazan for the analysis of propafenone and diltiazem hydrochlorides using kinetic spectrophotometric and spectrofluorimetric methods

Main Article Content

Magda Mohamed Ayad
Hisham Ezzat Abdellatef
Mervat Mohamed Hosny
Yassmin Ahmed Sharaf

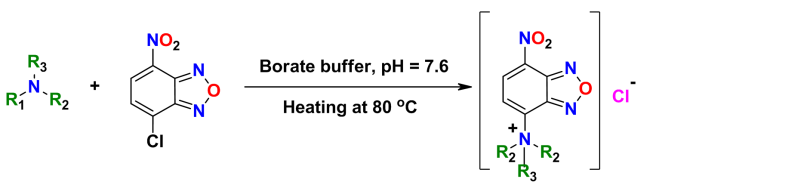

Several simple, sensitive, accurate and inexpensive spectrophotometric and spectrofluorimetric methods were developed for the determination of propafenone HCl and diltiazem HCl using 4-chloro-7-nitrobenzofurazan (NBD-Cl) accompanied with kinetic study, either in pure form or in pharmaceutical preparations. In this work, the cited drugs react with (NBD-Cl) in presence of borate buffer of pH = 7.6 at a fixed time of 30 minutes on thermostated water bath at (75-80 °C). The absorbance was measured using spectrophotometric technique at 489 and 481 nm for propafenone HCl and diltiazem HCl, respectively, or by using spectrofluorimetric technique after dilution at the specific wavelength of excitation and emission.The calibration curves were linear in the range of 4-44, 16-96 µg/mL when using spectrophotometric method, and 0.4-3.6, 1.6-8.8 µg/mL when spectrofluorimetric method was applied for propafenone HCl and diltiazem HCl, respectively. The limit of quantitation and the limit of detection were also calculated. The methods were applied successfully to commercial dosage form and can be further applied for their determination on a large scale in quality control laboratories. The obtained results statistically agreed with those obtained by reference methods. The determination of the studied drugs by the fixed concentration and rate constant methods is feasible with the calibration equations obtained, but the fixed time method proves to be more applicable.


icon graph This Abstract was viewed 2554 times | icon graph Article PDF downloaded 1249 times

How to Cite
Ayad, M. M.; Abdellatef, H. E.; Hosny, M. M.; Sharaf, Y. A. Application of 4-Chloro-7-Nitrobenzofurazan for the Analysis of Propafenone and Diltiazem Hydrochlorides Using Kinetic Spectrophotometric and Spectrofluorimetric Methods. Eur. J. Chem. 2013, 4, 35-43.

Article Details

Crossref - Scopus - Google - European PMC

[1]. The British Pharmacopoeia, Volumes II and III, Her Majesty's Stationery Office, London, UK, 2009.

[2]. Sweetman, S. C. Martindale-The Complete Drug Reference, 35th edition, The Pharmaceutical Press, London, 2007.

[3]. United States Pharmacopoeia, XXIV, United States Pharmacopoeia Convention, Washington, DC, 2007.

[4]. El-Dawy, M. A.; Mabrouk, M. M.; El-Barbary, R. A. Chem. Pharm. Bull. 2006, 54, 1026-1029.

[5]. Lamprecht, G.; Stoschitzky, K. J. Chromatogr. 2009, 877, 3489-3494.

[6]. Brode, E.; Kripp, U.; Hollmann, M. Arzneim. Forsch. 1984, 34, 1455-1460.

[7]. Brode, E.; Kripp, U.; Breckwoldt, W. MethodsFind. Exp. Clin. 1988, 10, 319-329.

[8]. Flores-Perez, C.; Juarez-Olguin, H. Chromatographia 2005, 62, 373-377.

[9]. Pires de Abreu, L. R.; Lanchote, V. L.; Bertucci, C.; Cesarino, E. J.; Bonato, P. S. J. Pharm. Biomed. Anal. 1999, 20, 209-216.

[10]. Buszewski, B.; Nowaczyk, J.; Ligor, T.; Olszowy, P.; Ligor, M.; Wasiniak, B.; Miekisch, W.; Schubert, J. K.; Amann, A. J. Sep. Sci. 2009, 32, 2448-2454.

[11]. Hofmann, U.; Pecia, M.; Heinkele, G.; Dilger, K.; Kroemer, H. K.; Eichelbaum, M. Chromatogr., B: Biomed. Sci. Appl. 2000, 748, 113-123.

[12]. Köppel, C.; Tenczer, J.; Peixoto-Menezes, K. M. J. Chromatogr. B. 1991, 563(1), 73-81.

[13]. Chan, G. L. Y.; Axelson, J. E.; Abbott, F. S.; Kerr, C. R.; McErlane, K. M. J. Chromatogr. B 1987, 417, 295-308.

[14]. Huang, M. B.; Li, G. L.; Yang, G. S.; Shi, Y. H.; Gao, J. J.; Liu, X. D. J. Liq. Chromatogr. Relat. Technol. 1997, 20, 1507-1514.

[15]. Chankvetadze, B.; Lomsadze, K.; Blaschke, G. J. Sep. Sci. 2001, 24, 795-801.<795::AID-JSSC795>3.0.CO;2-V

[16]. Wang, Z. H.; Zhou, S. P.; Liu, X. Z. Fenxi Huaxue 1992, 20, 750-754.

[17]. Ni, H. G.; Ning, M. X.; Zheng, J. B. Fenxi Ceshi Xuebao 2004, 23, 61-63.

[18]. Kamath, B. V.; Shivram, K. Indian drugs 1991, 29, 50-52.

[19]. Sreedhar, K.; Sastry, C. S. P.; Reddy, M. N.; Sankar, D. G. Indian Drugs 1995, 32, 90-92 .

[20]. Rahman, N.; Azmi, S. N. H. J. Pharm. Biomed. Anal. 2000, 24, 33-41.

[21]. Hosny, M. M. Mansoura J. Pharm. Sci. 2004, 20, 64-77.

[22]. Bindu, R.; Chandrasekharan, A. K. Indiandrugs 1994, 31, 168-169.

[23]. Pietras, R.; Kowalczuk, D.; Hopkala, H. Acta Pol. Pharm. 2004, 61, 315-320.

[24]. Rahman, N.; Azmi, S. N. H.; Ahmad, Y. J. Chin. Chem. Soc. 2007, 54, 419-430.

[25]. Leitao, J. M. M.; Esteves da Silva, J. C. G. Anal. Chim. Acta 2008, 609, 1-12.

[26]. Rahman, N.; Azmi, S. N. H. Microchem. J. 2000, 65, 39-43.

[27]. Ayad, M. M.; Shalaby, A. A.; Abdellatef, H. E.; Hosny, M. M. Anal. Bioanal. Chem. 2003, 376, 710-714.

[28]. El-Didamony, A. M. Cent. Eur. J. Chem. 2005, 3, 520-536.

[29]. Sabino, L. Z. L.; Marino, D. C.; Moya, H. D. Can. J. Chem. 2010, 88, 533-539.

[30]. Holloway, G.; Rowe-Joyce, H.; Wahab, H. Pharm. Technol. Eur. 2008, 1, (URL:

[31]. Li, K.; Zhang, X.; Yuan, Y. S.; Luo, N.; Tan, L. Chinese J. Chromatogr. 1997, 15, 451-453.

[32]. Carignan, G.; Carrier, K.; Laganiere, S.; Lessard, M. J. Chromatogr. B, Biomed. Appl. 1995, 672, 261-269.

[33]. Leneveu, A.; Stheneur, A.; Bousquet, A.; Roux, A. J. Liq. Chromatogr. 1991, 14, 3519-3530.

[34]. Morris, R. G.; Saccoia, N. C.; Jones, T. E. J. Liq. Chromatogr. Relat. Technol. 1996, 19, 2385-2394.

[35]. Ishii, K.; Minato, K.; Nakai, H.; Sato, T. Chromatographia 1995, 41, 450-454.

[36]. Naz, S.; Sultana, N.; Arayne, M. S.; Shafi, N. Int. J. Pharm. Res. Develop. 2010, 2, 6-12.

[37]. Malavasi, B.; Ascalone, V. J. High Resolut. Chromatogr. 1996, 19, 503-510.

[38]. Agbaba, D.; Solomon, L.; Zivanov-Stakic, D. J. Planar Chromat. 1997, 10, 303-304.

[39]. Engelhart, D. A.; Lavins, E. S.; Seligman, S. S.; Sutheimer, C. A. J. Anal. Tox. 1997, 21, 576-579.

[40]. Coors, C.; Schulz, H. G.; Stache, F. J. Chromatogr. A 1995, 717, 235-243.

[41]. Leng, Z.; Hu, X.; Feng, P.; Bai, W. Fenxi-Yiqi 1993, 3, 15-18.

[42]. Cunningham, L.; Freiser, H. Anal. Chim. Acta 1984, 157, 157-162.

[43]. Liu, S-X.; Hou, L-J.; Jin, G-Q.; Liang, R-X. China J. Trad. Chinese Med. Pharm. 2010, 35(2), 238-240.

[44]. Leng, Z. Z.; Hu, X. Y.; Jiang, X. M.; Yu, R. J. Fenxi-Huaxue 1995, 23, 332-335.

[45]. Ghandour, M. A.; Kasim, E. A.; Ali, A. M. M.; El-Haty, M. T. Ahmed, M. M. J. Pharm. Biomed. Anal. 2001, 25, 443-451.

[46]. El-Emam, A. A.; Hansen, S. H.; Moustafa M. A.; El-Ashry, S. M.; El-Sherbiny, D. T. J. Pharm. Biomed. Anal. 2004, 34, 35-44.

[47]. Haggag, R.; Belal, S. F.; Shaalan, R. Sci. Pharm. 2008, 76, 33-48.

[48]. Abd El-Ghaffar, M.; El-Sherbiny, D.; El-Wasseef, D.; El-Ashry, S. J. Food Drug Anal. 2008, 16, 26-35.

[49]. Rageh, A. H.; El-Shaboury, S. R.; Saleh, G. A.; Mohamed, F. A. Nat. Sci. 2010, 2, 828-840.

[50]. Al-Majed, A. A.; Belal, F.; Abounassif, M. A.; Khalil, N. Y. Microchem. Acta 2003, 141, 1-6.

[51]. Abdel-Wadood, H. M.; Mohamed, N. A.; Mahmoud, A. M. Spectrochim. Acta A 2008, 70, 564-570.

[52]. Walsh, M.; Belal, F.; El-Enany, N.; Elmansi, H. J. Fluoresc. 2011, 21, 105-112.

[53]. Zacharis, C. K.; Tzanavaras, P. D.; Mouroutis, P. N.; Rigas, P. G. Anal. Lett. 2011, 44, 1821-1834.

[54]. Amin, A. S.; Ragab, G. H.; Saleh, H. J. Pharm. Biomed. Anal. 2002, 30, 1347-1353.

[55]. Saleh, H. M.; El-Henawee, M. M.; Ragab, G. H.; El-Hay, S. S. Spectrochim. Acta A 2007, 67, 1284-1289.

[56]. Saleh, H. Mansoura J. Pharm. Sci. 2002, 18, 7-14

[57]. Abdellatef, H. E. J. Pharm. Biomed. Anal. 2002, 29, 835-842.

[58]. Taha, E. A. J. Anal. Bioanal. Chem. 2003, 376, 1131-1136.

[59]. Darwish, I. A. Anal. Chim. Acta 2005, 551, 222-231.

[60]. Shehata, M. A.; El-Sayed, G. M.; Abdel-Fattah, L. E. J. AOAC Int. 2006, 89, 646-650.

[61]. El-Enany, N.; Belal, F.; Rizk, M. Sci. Pharm. 2006, 74, 99-119.

[62]. Abdel-Hay, M. H.; Hassan, E. M.; Gazy, A. A.; Belal, T. S. J. Chin. Chem. Soc. 2008, 55, 818-827.

[63]. Tahaa, E. A.; Hassan, N. Y.; Aala, F. A; Abdel Fattah, L. E. Science Asia 2008, 34, 107-113,

[64]. Ashour, S.; Bahbouh, M.; Khateeb, M. Int. J. Biomed. Sci. 2010, 6, 19-26.

[65]. Anis, S. M.; Hosny, M. M.; Abdellatef, H. E.; El-Balkiny, M. N. Pharm. Anal. Acta 2011, 2, 116.

[66]. Saleh, H.; Schnekenburger, J. Analyst 1992, 117, 87-92.

[67]. El-Shiekh, R.; Zahran, F.; Gouda. A. A. Spectrochim. Acta A 2007, 66, 1279-1287.

[68]. Weisberger, A.; Friess, S. L.; Lewis, E. S. Techniques of Organic Chemistry, vol. 3, Interscience, New York, 1953, Part III

[69]. Yatsimirskii, K. B. Kinetic Methods of Analysis, Pegamon Press, Oxford, 1966

[70]. Laitinen, H. A.; Harris, W. E. Chemical Analysis, 2nd ed., McGraw-Hill, New York, 1975.
